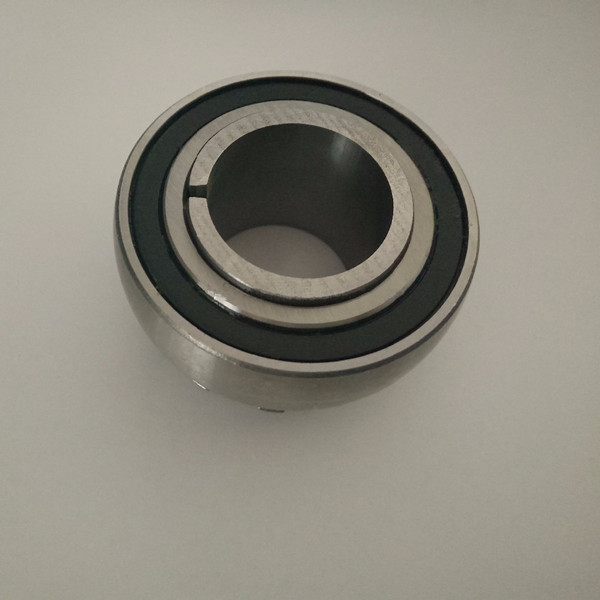

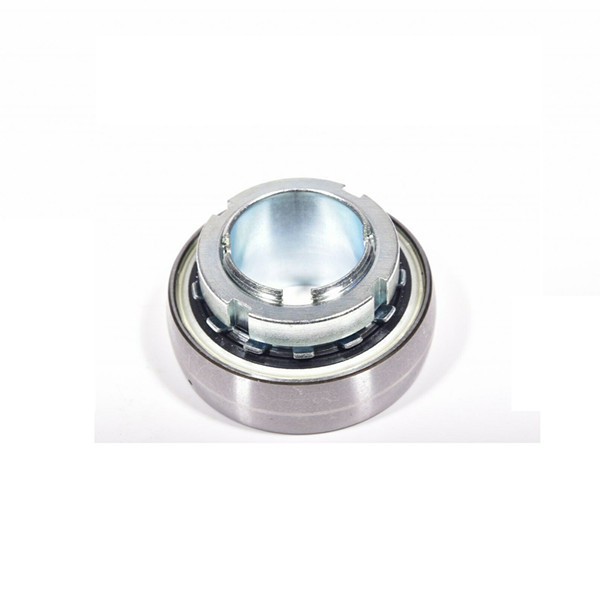

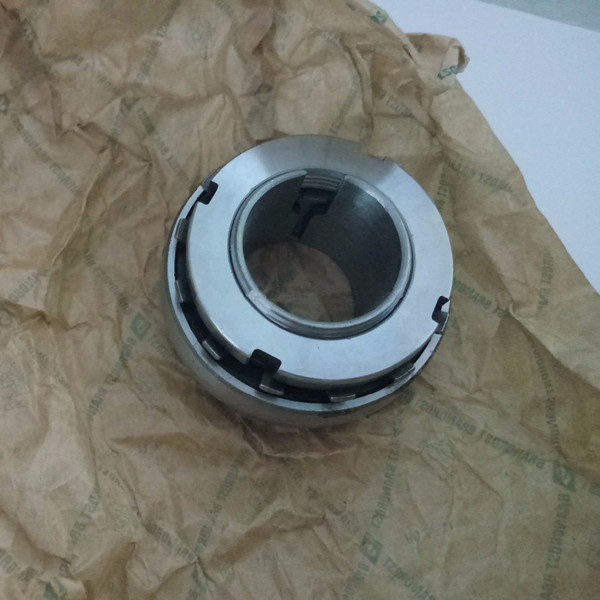

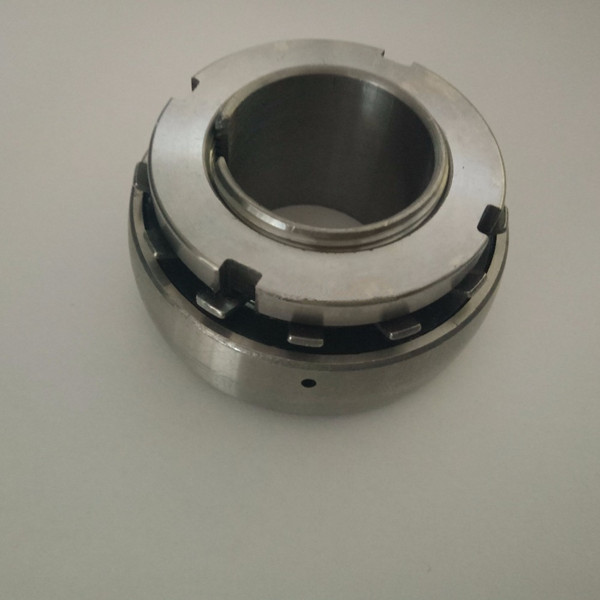

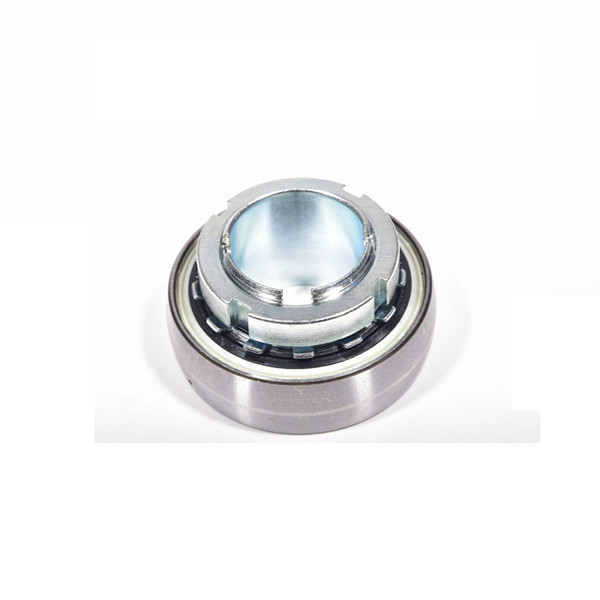

GSH series INA radial insert ball bearings GSH30-XL-2RSR-B
Bore Diameter: 30 mm
Outside Diameter: 2.4409 in
Outer Ring Width: 18 mm
Inner Ring Width: 32 mm
Bore Type: Round
Locking Device: Adapter Mount
Operating Temperature Range: -20 to +120 °C
Radial Dynamic Load Capacity: 18900 N
Radial Static Load Capacity: 11600 N
Finish/Coating: Uncoated
Seal Type: Contact Seal
Series: GSH..-2RSR-B
About BHR Bearing ( Shenzhen Qinggong Bearing Co, Ltd.)
Shenzhen Qinggong Bearing Co., Ltd. （www.bhrbearing.cn）is a well-know bearing manufacturer in China since the year 1996 with its own factory. Despite our own BHR bearings, we also distribute kinds of famous branded bearings from worldwide manufacturers SKF, FAG, NSK, KOYO, NTN, NACHI, ASAHI, TOYOTA......and OEM can also be supplied.
We Shenzhen Qinggong Bearing Co., Ltd. is focused and committed to deliver our customers high quality products and solutions because they are at the core of everything we do. By combining technology with our design engineering expertise we are able to offer a breadth of advanced bearings and solutions.
With variety of bearinAgs, competitive prices, fast delivery and good after-sale service, hope we will get a chance to talk bearings together.

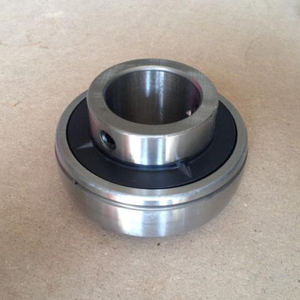

Ball insert bearing catalogue:
| P.N. | Dimensions(mm) | Weight |
| d(mm) | D | Bi | Be | r | n | m | G | ds | T | kg |
| UC201 | 12 | 47 | 31 | 17 | 1 | 12.7 | 18.3 | 5 | M6X0.75 | 3.7 | 0.21 |
| UC202 | 15 | 47 | 31 | 17 | 1 | 12.7 | 18.3 | 5 | M6X0.75 | 3.7 | 0.19 |
| UC203 | 17 | 47 | 31 | 17 | 1 | 12.7 | 18.3 | 5 | M6X0.75 | 3.7 | 0.18 |
| UC204 | 20 | 47 | 31 | 17 | 1 | 12.7 | 18.3 | 5 | M6X0.75 | 3.7 | 0.16 |
| UC205 | 25 | 52 | 34.1 | 17 | 1.5 | 14.3 | 19.8 | 5 | M6X0.75 | 3.9 | 0.19 |
| UC206 | 30 | 62 | 38.1 | 19 | 1.5 | 15.9 | 22.2 | 5 | M6X0.75 | 5 | 0.31 |
| UC207 | 35 | 72 | 42.9 | 20 | 2 | 17.5 | 25.4 | 6 | M8X1 | 5.7 | 0.46 |
| UC208 | 40 | 80 | 49.2 | 21 | 2 | 19 | 30.2 | 8 | M8X1 | 6.2 | 0.63 |
| UC209 | 45 | 85 | 49.2 | 22 | 2 | 19 | 30.2 | 8 | M8X1 | 6.4 | 0.68 |
| UC210 | 50 | 90 | 51.6 | 24 | 2 | 19 | 32.6 | 10 | M10X1.25 | 6.5 | 0.78 |
